Double Glazed Windows and Doors

This range of Thermal Break windows and doors can be configured to make: Fixed Frames, Outward Opening Casement Windows, Inward Opening Casement Windows, Turn & Tilt Windows, Bottom Hung Windows, French Doors, Balcony Doors and Entry Doors. EC45TB Series is ideal for situations that require high thermal and acoustic insulation.

Features & Benefits

		Turn & Tilt opening system
		Increased airflow and greater control of ventilation
		Multi-position locking for added strength and security
		Efficient thermal insulation
		Maximum wind and water tightness
		High acoustic insulation
		Energy savings
		Low maintenance
		Long lasting & corrosion resistant
		Beauty and design

Range Configuration

		Fixed Window
		Turn & Tilt Window
		French Door
		Awning Window
		Tilt Only Window
		Balcony Door
		Casement Window
		Outward Open Window/Door
		Inward Open Window/Door

Technical Data

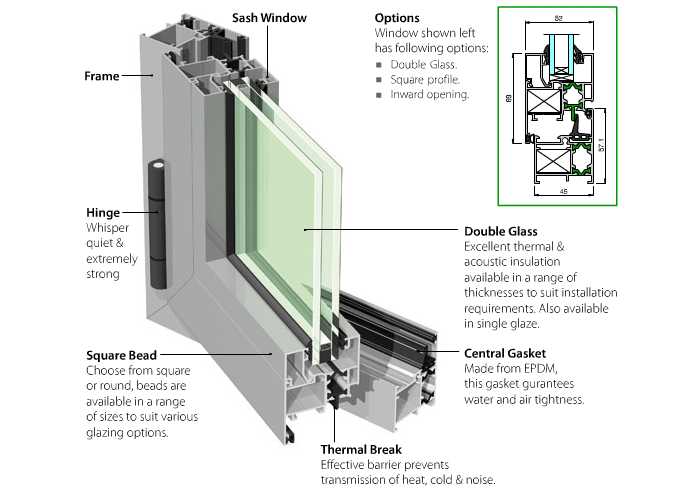

What is thermal break system?

Re-inforced polyamide bars are inserted between the inside and outside aluminium profiles to provide an insulated aluminium window/door. In fact a natural advancement in the improvement of the quality of life together with the desire to find new solutions in energy saving have contributed to the development of new architectural solutions in insulation either in industrial or in private buildings; this is the reason why thermal break window and door systems have been designed and developed.

Advantages of Thermal Break System:

• Energy saving up to 66% better than a standard aluminium window reducing expenses on heating and on air conditioning.
• Reduction of condensation.
• Reduction of noise.
• Aesthetic advantage: bi-coloured systems (upon request).

Accessories

Euroaluminium accessories are specifically designed/selected for use with Euro Collection window/doors and are made from premium materials for optimum reliability, performance and safety. Standardisation and clever design have resulted in the minimum number of accessories to manufacture the maximum range of window/doors.

Gaskets

Gaskets are made from black EPDM extrusions to achieve the highest performance possible. Windows/Doors have a triple seal including a central gasket that divides the existing air chamber between the fixed frame and the opening sash.

Aluminium Profiles

Aluminium profiles are made from 6063 alloy, with limited composition tolerances and are suitable for anodising or powder coating. This unique window/door system has interchangeable non-thermal and thermal break profiles. The mass, paint perimeter (PP), profile perimeter (P), moments of intertia (JX & JY) can be provided upon request.

Glazing

The Euro Collection accomodates glazing or panels with thickness ranging from 4 to 25.2mm. The Euro Collection can accomodate all types of single glazing & double glazing options.

Surface Finishing

The sections can be anodised or powdercoated. The finish is a hard wearing and highly durable surface coating and has been designed to withstand harsh Australian climate, including sea spray. It is available in a large range of colours.

Tested & Guranteed

Rigorous laboratory tests guarantee the highest quality and performance of the ‘Euro Collection’. Manufactured using the most sophisticated technology, durable aluminium profiles and high quality fittings. The Euro Collection complies with Australian Standards, also with AWA – Australian Window Association and WERS – Window Energy Rating Scheme.
